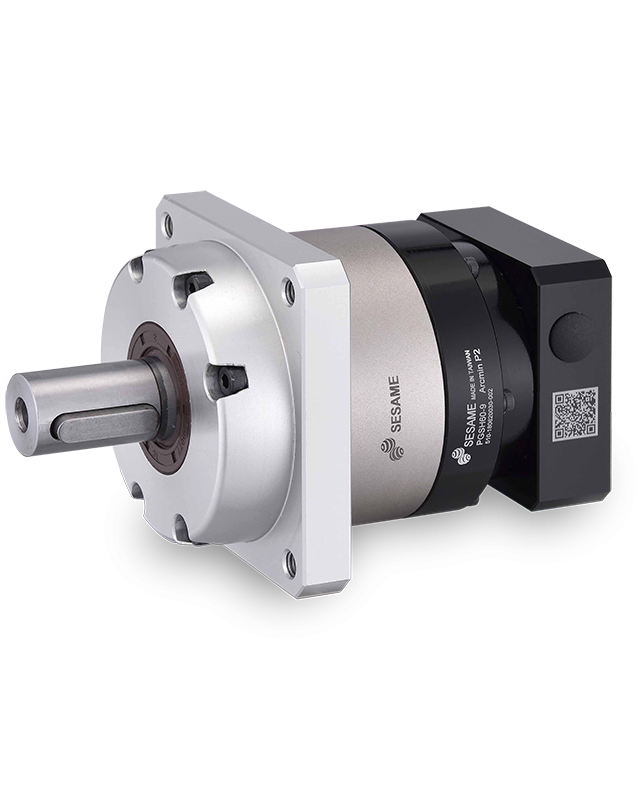

phch series, high ohl

with sesame phch series planetary gearboxes you have the suitable alternative with superior output torque and superior over hung load capabilities, all in one gearbox.

features:

• perfect stiffness even under the highest bearing loads
• radial load capacity from 2080n up to 11380n
• high output torque with particularly low-noise and smooth drive
• service-life synthetic lubricant for maintenance-free operation
• ip65 sealing

sesame phch series is specifically designed to meet the rigorous demands in over hung loads capabilities such as packaging equipment, belt conveyor and radar driving system. reinforced torque capacity and output shaft loading capability making it a reliable option for high radial loads handling.

available options:

• 4 frame sizes, 70, 90, 120, 155 mm
• wide range of ratios 3:1 to 100:1, 8-single stage, 13-double stage
• universal mounting dimensions, easy integration into existing systems
• off the shelf motor adapter for most popular servo motors
• short lead-times, customization available

pglh series

this precision type helical gear planetary gear reducer is offering 3 precision levels and 7 frame sizes to choose. they are ready for most industry and motion control applications. square mounting flange, caged precision class helical planetary gears in an inline housing through sizes 220 mm. high torque capacity, quiet operation with backlash as low as < 3 arcmin. ratios 3:1 to 100:1. pglh is designed to offer a consideration for achieving the desired goal at the most cost effective price.

features

• inline configuration with output shaft 13 mm through 75 mm diameter
• torque capacity range: 11 nm through 2000 nm
• caged planet carrier: with precision helical planet gear set
• high performance, efficiencies and low acoustics
• wide range of ratios: 8 single stage ratios and up to 13 two-stage ratios
• output bearings deliver radial load capacity 28000 n, and axial capacities to 15000 n
• square servo and step motor input: accommodates 40 mm to 220 mm, with optional sizes available

specs

• frame size (mm): 42, 60, 90, 115, 142, 180, 220
• ratio: 3-100:1
• nominal input speed (rpm): 2000-4000
• max. input speed (rpm): 4000-8000
• backlash (arcmin): 3-8 single stage, 5-10 two stages
• noise level (dba/1m): 58-72
• enclosure: ip65
• lubricant: service life synthetic lubricant

pgch series

sesame motor pgch inline planetary gearheads provide integration between superior operating performance and cost effectiveness. one-piece planet carrier/output shaft and newly designed gear profile benefit higher output torque, precision, loading capacity and lower noise level. high quality gears and components are utilized to create compact and rigid unit with low backlash and maintenance-free operation. 3 levels of precision are available with max frame size 235 mm. adapters for all servo motors.

features

• one-piece planet carrier/output shaft, high torsional rigidity and loading capacity
• one-piece compact ring gear design, high precision and output torque
• alloy steel precision gears, low backlash, low noise, high wear resistance
• lubricated for life and ip65 sealing, maintenance free
• adapters for all servo motors

specs

• frame size (mm): 50, 70, 90, 120, 155, 205, 235
• ratio: 3-100:1
• nominal input speed (rpm): 2000-5000
• max. input speed (rpm): 3500-10000
• backlash (arcmin): 3-8 single stage, 5-10 two stages
• noise level (dba/1m): 58-70
• enclosure: ip65
• lubricant: service life synthetic lubricant

pgeh series

sesame motor pgeh inline planetary gearheads provide integration between superior operating performance and cost effectiveness. one-piece planet carrier/output shaft and newly designed gear profile benefit higher output torque, precision, loading capacity and lower noise level. high quality gears and components are utilized to create compact and rigid unit with low backlash and maintenance-free operation. 3 levels of precision are available with max frame size 180 mm. adapters for all servo motors.

features

• one-piece planet carrier/output shaft, high torsional rigidity and loading capacity
• one-piece compact ring gear design, high precision and output torque
• alloy steel precision gears, low backlash, low noise, high wear resistance
• lubricated for life and ip65 sealing, maintenance free
• adapters for all servo motors

specs

• frame size (mm): 50, 70, 90, 120, 180
• ratio: 3-100:1
• nominal input speed (rpm): 2500-4000
• max. input speed (rpm): 4000-8000
• backlash (arcmin): 3-8 single stage, 5-10 two stages
• noise level (dba/1m): 58-68
• enclosure: ip65
• lubricant: service life synthetic lubricant

pgsh series

pgsh inline planetary gearheads provide integration between superior operating performance and cost effectiveness. one-piece planet carrier/output shaft and newly designed gear profile benefit higher output torque, precision, loading capacity and lower noise level. high quality gears and components are utilized to create compact and rigid unit with low backlash and maintenance-free operation. 2 levels of precision are available with max frame size 142 mm. adapters for all servo motors.

features

• one-piece planet carrier/output shaft, high torsional rigidity and loading capacity
• one-piece compact ring gear design, high precision and output torque
• alloy steel precision gears, low backlash, low noise, high wear resistance
• lubricated for life and ip65 sealing, maintenance free
• adapters for all servo motors

specs

• frame size (mm): 42, 60, 90, 115, 142
• ratio: 3-100:1
• nominal input speed (rpm): 2500-4000
• max. input speed (rpm): 5000-8000
• backlash (arcmin): 5-8 single stage, 7-10 two stages
• noise level (dba/1m): 58-67
• enclosure: ip65
• lubricant: service life synthetic lubricant

pua series, high ohl

high radial load

the pua series of output shaft inline helical gearbox provide a wide range of performance levels to high positioning accuracy and motion control applications, particularly when high radial loading is required. frame sizes 60-140 mm with the best level of backlash < 1 arcmin. maximum radial load capacity up to 11380n (pua-140), and axial load capacity up to 8830n. the pua is specially well suited to work with pinion and rack for linear operation. commonly adapted in metal cutting machines, wood processing equipment, machine centers and highly dynamic motion control systems. the reinforced model pul series are available with extra high radial loading performance.

features

• 3 levels of backlash, 4 frame sizes from 60-140 mm
• premium and precision gear design, ratios from 3-100:1
• one-piece planet carrier/output shaft, high rigidity and radial load capacity
• radial load capacity as high as 11380 n, and axial capacities up to 8830 n
• hardened and ground gearing, high wear resistance and impact toughness
• one-piece ring gear/housing, high precision and torque output
• planets with full needle bearing support
• ip65 enclosure and synthetic lubricant, maintenance-free service life

specs

• frame size (mm): 60, 75, 100, 140
• ratio: 3-100:1
• nominal input speed (rpm): 2500-4000
• max. input speed (rpm): 4500-6000
• backlash (arcmin): 1-6 single stage, 3-8 two stages
• max. radial load (n): 1900-11380
• service life (hrs): 30000 (15000 continuous operation)
• noise level (dba/1m): 58-70
• enclosure: ip65
• lubricant: service life synthetic lubricant
